Measure Dialysis Adequacy

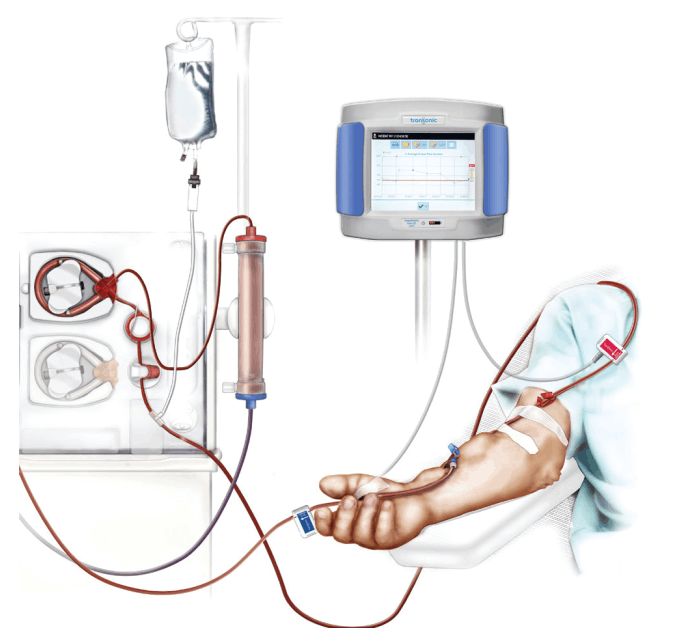

Delivered Flow and Recirculation results to identify dose delivery problems in the AV access and Central Venous Catheters allowing localized (on-the-spot) treatment optimization by nurses or qualified medical personnel.

Trend Vascular Access Flow

A drop in Access Flow Signals the onset of a stenosis, in time for proactive minimally invasive intervention. A high Access Flow can signal a potential high-output cardiac failure.

HD03 Main Features & Benefits

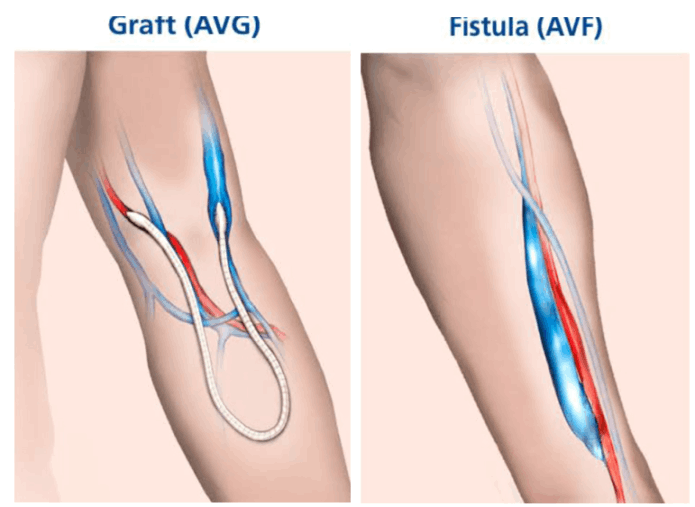

HD03 Measurements can be performed on all Chronic or Acute Adult, and Pediatric Hemodialysis patients' AV fistulas, grafts and catheters during routine dialysis.

Ease to Use

The HD03 operates independently with on-screen step-by-step procedural guidance.

Quick and Accurate

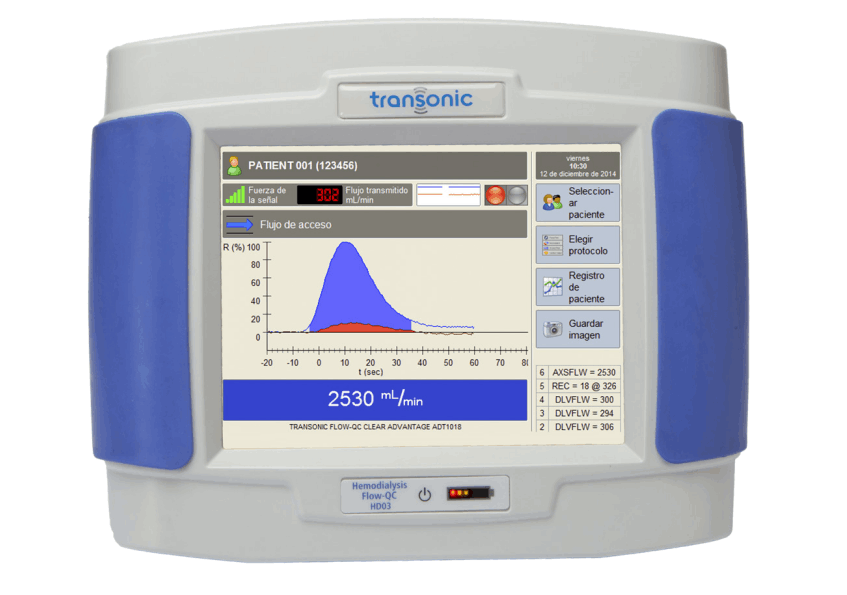

Results are displayed instantly on the HD03 Monitor screen.

Patient-less Measurement Module (PMM)

PMM allows displayed measurement to be manually recorded in patient's chart & does not save any patient information or measurement
data

Administrator Management Module (DTM)

DTM trends and archives measurements under patient's name (Not available without MDR clearance) & & measurement data to be transferred to
a computer loaded with HD03 Administrative software for further analysis.

Portability

Rechargeable battery operated HD03 permits flexibility, portability and mobility.

Safety/Infection Control

Touch-screen input prevents cross contamination, and can be disinfected by using diluted bleach solution or soap.

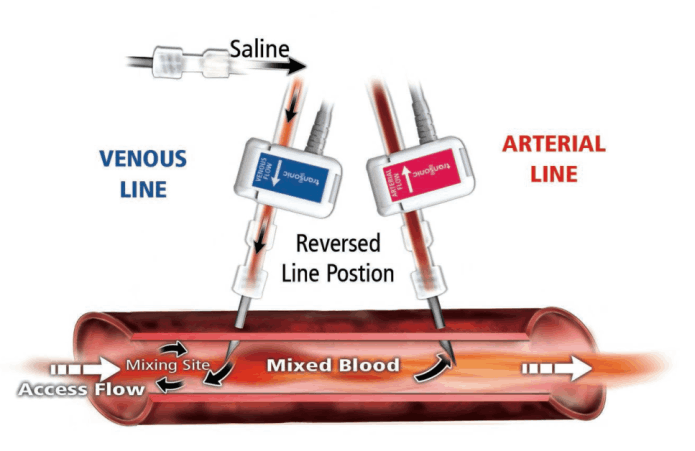

H4FX Flow/Dilution Sensors

Paired sensors passultrasond waves through dialysis tubing to measure blood flow and other related parameters.

HD03 Specifications

The milestone in excellent health care.

PHYSICAL PARAMETERS
Weight: 6 lbs (2.7 Kg)
Dimensions: 9.5” x 11.5” x 7” (24cm x 29cm x 18cm)
Display: VGA LCD Interactive Touch Screen (8.4”) (21cm)
USB Port: Type A; For connection to Transonic DTM only
Sensor Connector: 36-pin high-density connector

POWER SUPPLY
External AC Input: 100 - 240 VAC (±10%); 50-60 Hz. nominal
External Connector: International 3 conductor type IEC 320
Output: 15 VDC, 2.6A
Battery: 12.6 VDC (max) 8.7 Ahr (min) Li-ion

ELECTRICAL ISOLATION
Hemodialysis monitor complies with USA standards for medical
and dental equipment (IEC60601), and with European standards
for medical and ultrasonic apparatus (DIN IEC 601-1, VDE 0750
-1/5.82, IEC 62D Sec. 31). Input leakage current < 50 uA; Patient
leakage current < 10 uA ; Patient Isolation > 2500 V, double
insulated. Meets IEC 60601-1 Cardiac Floating (CF) specification.
